Last week I blogged Part 2 showing the creation of a native function plugin, in this post I want to take that native function a step further and use the OpenAI Function calling. This will allow us to not provide the current date when making the call to get a historic daily fact and have OpenAI call a function to get the current date.

I’ve added the HelloWorld.Plugin3.Console project to the GitHub repo for the code in this blog entry.

Semantic Kernel Plugin: Native Function and OpenAI Function Calling

Function calling is also called “external tools”. I mentioned it in Demo Review: Simple RAG using Blazor, SQL Server, Azure OpenAI and Function Calling and how it changes the flow a bit. Instead of calling OpenAI and expecting an answer, we pass a question and in addition we give it information about functions they can call and what they do, then have the LLM decide what functions to call and what information to pass to them, then we return those results back to the LLM and so on until it has enough information to answer.

NOTE: The descriptions on the function and arguments are very important

Since not all OpenAI models support function calling, you will need to verify in the docs that model version you are using supports it.

Just a reminder of what we are looking to reproduce: a hello world example that calls OpenAI with a simple prompt with today’s day and return a historical fact about the date - however in this entry we are going to let OpenAI figure out what today’s day is. The output should be similar to this:

Bills Code

The Code:

The code is in the GitHub repo and like the other blog entries, I created a console app just for the code in this one to make it easier to focus on one thing at a time.

The following two files are important for this blog:

/Plugins/DailyFactPlugin.cs - added an additional function to retrieve the current day
Program.cs - this has the code to utilize the new native function
/Configuration/ServiceCollectionExtensions.cs - added new extension and utilities for logging JSON going back and forth between OpenAI or Azure OpenAI.

DailyFactPlugin

This is mostly the same as Part 2 with some additions.

using Microsoft.SemanticKernel;
using System.ComponentModel;
using System.ComponentModel.DataAnnotations;

namespace HelloWorld.Plugin.Console.Plugins;

public class DailyFactPlugin
{
    private const string DESCRIPTION = "Provides interesting historic facts for the current date.";
    private const string TEMPLATE = @"Tell me an interesting fact from world
        about an event that took place on {{$today}}.
        Be sure to mention the date in history for context.";
    private const string GET_DAILY_FACT_FUNC = "GetDailyFactFunc";
    internal const string PLUGIN_NAME = "DailyFactPlugin";
    internal const string GET_DAILY_FACT = "GetDailyFact";

    private readonly KernelFunction _dailyFact;
    private readonly KernelFunction _currentDay;

    public DailyFactPlugin()
    {
        PromptExecutionSettings settings = new()
        {
            ExtensionData = new Dictionary<string, object>()
            {
                { "Temperature", 0.7 },
                { "MaxTokens", 250 }
            }

        };

        _dailyFact = KernelFunctionFactory.CreateFromPrompt(TEMPLATE,
            functionName: GET_DAILY_FACT_FUNC,
            executionSettings: settings);

        _currentDay = KernelFunctionFactory.CreateFromMethod(() => DateTime.Now.ToString("MMMM dd"), "GetCurrentDay");
    }

    [KernelFunction, Description(DESCRIPTION)]
    public async Task<string> GetDailyFact([Description("Current day"), Required] string today, Kernel kernel)
    {
        var result = await _dailyFact.InvokeAsync(kernel, new() { ["today"] = today }).ConfigureAwait(false);

        return result.ToString();
    }

    [KernelFunction, Description("Retrieves the current day.")]
    public async Task<string> GetCurrentDay(Kernel kernel)
    {
        var today = await _currentDay.InvokeAsync(kernel);

        return today.ToString();
    }
}

I added a member level variable for the new KernelFunction

private readonly KernelFunction _currentDay;

In the constructor, I initialized the _currentDay creating a KernelFunction from an inline method with its name and description

_currentDay = KernelFunctionFactory.CreateFromMethod(() => DateTime.Now.ToString("MMMM dd"), "GetCurrentDay", "Retrieves the current day.");

I also modified the GetDailyFact signature to indicate the today parameter is required with the [Required] attribute, which wasn’t necessary before due to the code in Program.cs calling the method directly with the arguments.

public async Task<string> GetDailyFact([Description("Current day"), Required] string today, Kernel kernel)

The GetCurrentDay method is the new KernelFunction that will return the current day in the format we want by invoking the _currentDay setup in the constructor.

[KernelFunction, Description("Retrieves the current day.")]
public async Task<string> GetCurrentDay(Kernel kernel)
{
    var today = await _currentDay.InvokeAsync(kernel);

    return today.ToString();
}

Using the Native Function

In the Program.cs file the top code hasn’t really changed, and it still just does the configuration:


using Microsoft.Extensions.Configuration;
using Microsoft.SemanticKernel;
using Microsoft.Extensions.Logging;
using Microsoft.Extensions.DependencyInjection;
using OpenTelemetry.Metrics;
using OpenTelemetry.Logs;
using HelloWorld.Plugin.Console.Plugins;
using HelloWorld.Plugin2.Console.Configuration;
using Microsoft.SemanticKernel.Connectors.OpenAI;

internal class Program
{
    static void Main(string[] args)
    {
        MainAsync(args).Wait();
    }

    static async Task MainAsync(string[] args)
    {
        var config = Configuration.ConfigureAppSettings();

        // Get Settings (all this is just so I don't have hard coded config settings here)
        var openAiSettings = new OpenAIOptions();
        config.GetSection(OpenAIOptions.OpenAI).Bind(openAiSettings);

        using var loggerFactory = LoggerFactory.Create(builder =>
        {
            builder.SetMinimumLevel(LogLevel.Information);

            builder.AddConfiguration(config);
            builder.AddConsole();
        });

        // Configure Semantic Kernel
        var builder = Kernel.CreateBuilder();

        builder.Services.AddSingleton(loggerFactory);
        builder.AddChatCompletionService(openAiSettings);

        ....
    }
}

NOTE: the last line in the above code has changed a little (more on that later)

To load the DailyFactPlugin, I add it to the Plugins on the KernelBuilder (this is just like the last entry):

        builder.Plugins.AddFromType<DailyFactPlugin>();

        Kernel kernel = builder.Build();

The prompt we want to use (compared to the first Hello World example on the right), is where this setup is a little different. We a not passing in the date, we are asking the LLM to use today’s date. Prompt

Also like in the first Hello World example, we setup the OpenAIPromptExecutionSettings and this time need to set the ToolCallBehavior to ToolCallBehavior.AutoInvokeKernelFunctions

        OpenAIPromptExecutionSettings settings = new()
        {
            ToolCallBehavior = ToolCallBehavior.AutoInvokeKernelFunctions,
            Temperature = 0.7f,
            MaxTokens = 250
        };

To cause the conversation to get started (so to speak), we invoke the prompt on the kernel:

        var funcresult = await kernel.InvokePromptAsync(prompt, new KernelArguments(settings));

        WriteLine($"\nRESPONSE: \n\n{funcresult}");

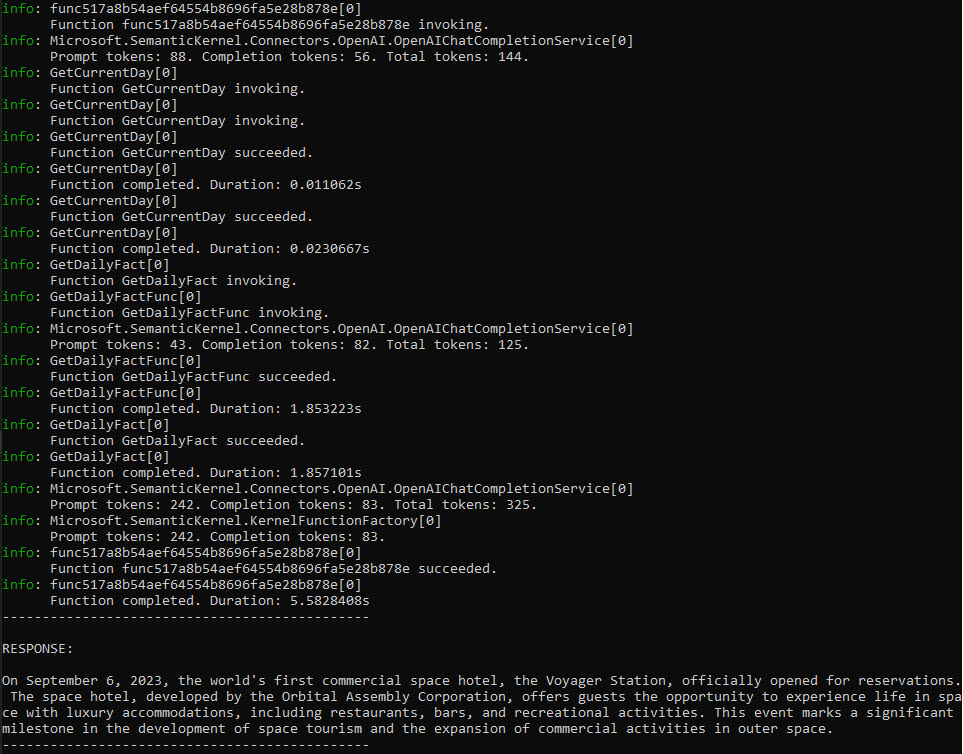

When you run the code there are more info entries than last time, but the output is pretty similar:

Output

Lesson Learned on Logging

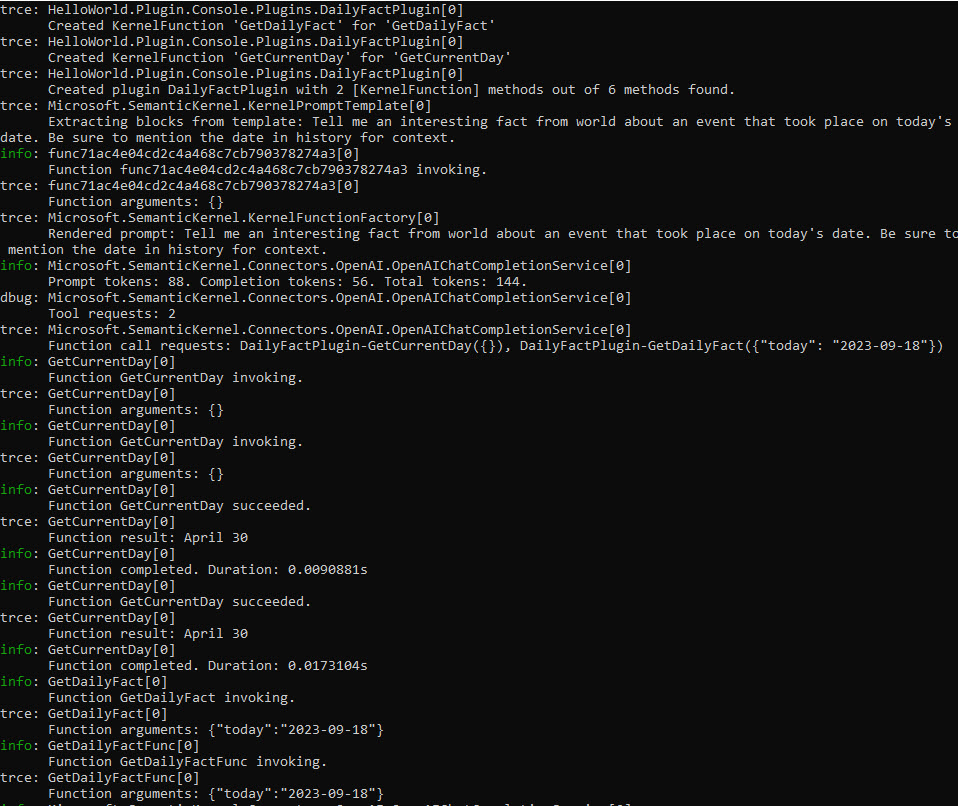

As I mention in Part 1, if you turn on Trace logging you will get more information about what is going on. Here is some of it:

Trace Output

The extra tracing information is nice, but wouldn’t it be nice to see the JSON in the API calls going back and forth? This is where that little change in the builder.AddChatCompletionService(openAiSettings); line earlier comes into play.

RequestAndResponseLoggingHttpClientHandler and RequestLoggingHttpClientHandler

In the ServiceCollectionExtensions.cs file, there is some new logic to provide the ability to log out the JSON being passed in the Request and/or Response to the LLM’s API.

There is an enum that allows you to indicate what level of logging you’d like to see - the default is None.

public enum ApiLoggingLevel
{
    None = 0,
    RequestOnly = 1,
    ResponseAndRequest = 2,
}

In order to use the overloads on the IKernelBuilder that take in an HttpClient I needed to use methods on it instead of the IServiceCollection. The new extension method is:

internal static class IKernelBuilderExtensions
{
    internal static IKernelBuilder AddChatCompletionService(this IKernelBuilder kernelBuilder, OpenAIOptions openAIOptions, ApiLoggingLevel apiLoggingLevel = ApiLoggingLevel.None)
    {
        switch (openAIOptions.Source)
        {
            case "AzureOpenAI":
                {
                    if (apiLoggingLevel == ApiLoggingLevel.None)
                    {
                        kernelBuilder = kernelBuilder.AddAzureOpenAIChatCompletion(openAIOptions.ChatDeploymentName, endpoint: openAIOptions.Endpoint,
                            apiKey: openAIOptions.ApiKey, serviceId: openAIOptions.ChatModelId);
                    }
                    else
                    {
                        var client = CreateHttpClient(apiLoggingLevel);
                        kernelBuilder.AddAzureOpenAIChatCompletion(openAIOptions.ChatDeploymentName, openAIOptions.Endpoint, openAIOptions.ApiKey, null, null, client);
                    }
                    break;
                }
            case "OpenAI":
                {
                    if (apiLoggingLevel == ApiLoggingLevel.None)
                    {
                        kernelBuilder = kernelBuilder.AddOpenAIChatCompletion(modelId: openAIOptions.ChatModelId, apiKey: openAIOptions.ApiKey);
                        break;
                    }
                    else
                    {
                        var client = CreateHttpClient(apiLoggingLevel);
                        kernelBuilder.AddOpenAIChatCompletion(openAIOptions.ChatModelId, openAIOptions.ApiKey, null, null, client);
                    }
                    break;
                }
            default:
                throw new ArgumentException($"Invalid source: {openAIOptions.Source}");
        }

        return kernelBuilder;
    }

    private static HttpClient CreateHttpClient(ApiLoggingLevel apiLoggingLevel)
    {
        HttpClientHandler httpClientHandler;
        if (apiLoggingLevel == ApiLoggingLevel.RequestOnly)
        {
            httpClientHandler = new RequestLoggingHttpClientHandler();
        }
        else
        {
            httpClientHandler = new RequestAndResponseLoggingHttpClientHandler();
        }
        var client = new HttpClient(httpClientHandler);
        return client;
    }
}

As you can see, there are two HttpHandlers that will either log the Request or the Request and Response. The code is inspired by this GitHub issue .Net: Document OpenAI function calling JSON Schema support by Frederik Rosenberg that I found really handy.

The code for the two handlers:

public class RequestAndResponseLoggingHttpClientHandler : HttpClientHandler
{
    protected override async Task<HttpResponseMessage> SendAsync(
        HttpRequestMessage request, CancellationToken cancellationToken)
    {
        if (request.Content is not null)
        {
            var content = await request.Content.ReadAsStringAsync(cancellationToken);
            var json = JsonSerializer.Serialize(JsonSerializer.Deserialize<JsonDocument>(content),
                new JsonSerializerOptions { WriteIndented = true });
            System.Console.WriteLine("***********************************************");
            System.Console.WriteLine("Request:");
            System.Console.WriteLine(json);
        }

        var result = await base.SendAsync(request, cancellationToken);

        if (result.Content is not null)
        {
            var content = await result.Content.ReadAsStringAsync(cancellationToken);
            var json = JsonSerializer.Serialize(JsonSerializer.Deserialize<JsonDocument>(content),
                new JsonSerializerOptions { WriteIndented = true });
            System.Console.WriteLine("***********************************************");
            System.Console.WriteLine("Response:");
            System.Console.WriteLine(json);
        }

        return result;
    }
}
public class RequestLoggingHttpClientHandler : HttpClientHandler
{
    protected override async Task<HttpResponseMessage> SendAsync(
        HttpRequestMessage request, CancellationToken cancellationToken)
    {
        if (request.Content is not null)
        {
            var content = await request.Content.ReadAsStringAsync(cancellationToken);
            var json = JsonSerializer.Serialize(JsonSerializer.Deserialize<JsonDocument>(content),
                new JsonSerializerOptions { WriteIndented = true });
            System.Console.WriteLine("***********************************************");
            System.Console.WriteLine("Request:");
            System.Console.WriteLine(json);
        }

        return await base.SendAsync(request, cancellationToken);
    }
}

NOTE: These are handy for debugging purposes, if you wanted to do something like this in a production application you’d want to modify them a bit.

In order to change the logging, you need to modify the line 38 in Program.cs from:

        builder.AddChatCompletionService(openAiSettings);

        builder.AddChatCompletionService(openAiSettings, ApiLoggingLevel.ResponseAndRequest);

Now when you run it again, you get to see the full JSON going back and forth - which also gives you a good idea of what is really going on under the hood.

The first request to the API shows the user message with the [KernelFunction] schema descriptions:

Request:
{
  "messages": [
    {
      "content": "Tell me an interesting fact from world about an event that took place on today\u0027s date. Be sure to mention the date in history for context.",
      "role": "user"
    }
  ],
  "max_tokens": 250,
  "temperature": 0.7,
  "top_p": 1,
  "n": 1,
  "presence_penalty": 0,
  "frequency_penalty": 0,
  "model": "gpt-3.5-turbo-1106",
  "tools": [
    {
      "function": {
        "name": "DailyFactPlugin-GetDailyFact",
        "description": "Provides interesting historic facts for the current date.",
        "parameters": {
          "type": "object",
          "required": [
            "today"
          ],
          "properties": {
            "today": {
              "type": "string",
              "description": "Current day"
            }
          }
        }
      },
      "type": "function"
    },
    {
      "function": {
        "name": "DailyFactPlugin-GetCurrentDay",
        "description": "Retrieves the current day.",
        "parameters": {
          "type": "object",
          "required": [],
          "properties": {}
        }
      },
      "type": "function"
    }
  ],
  "tool_choice": "auto"
}

The response from the API shows the choices array having a tool_calls array for the GetCurrentDay function on the DailyFactPlugin and a finish_reason = “tool_calls”:

Response:
{
  "id": "chatcmpl-9K4mdUZPbp1PJvpULSIBGXCYkZyi4",
  "object": "chat.completion",
  "created": 1714571975,
  "model": "gpt-3.5-turbo-1106",
  "choices": [
    {
      "index": 0,
      "message": {
        "role": "assistant",
        "content": null,
        "tool_calls": [
          {
            "id": "call_C5rmd3huqt3gWsTV3BHi6tK0",
            "type": "function",
            "function": {
              "name": "DailyFactPlugin-GetCurrentDay",
              "arguments": "{}"
            }
          }
        ]
      },
      "logprobs": null,
      "finish_reason": "tool_calls"
    }
  ],
  "usage": {
    "prompt_tokens": 104,
    "completion_tokens": 15,
    "total_tokens": 119
  },
  "system_fingerprint": "fp_b953e4de39"
}

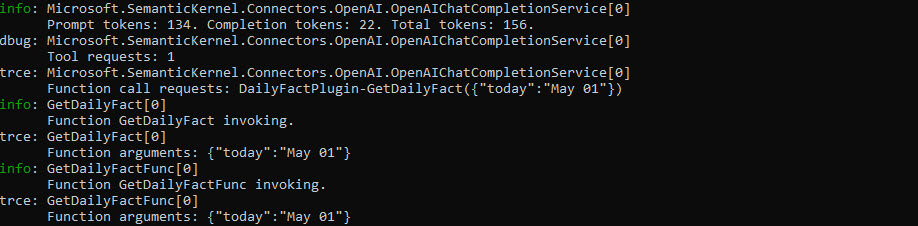

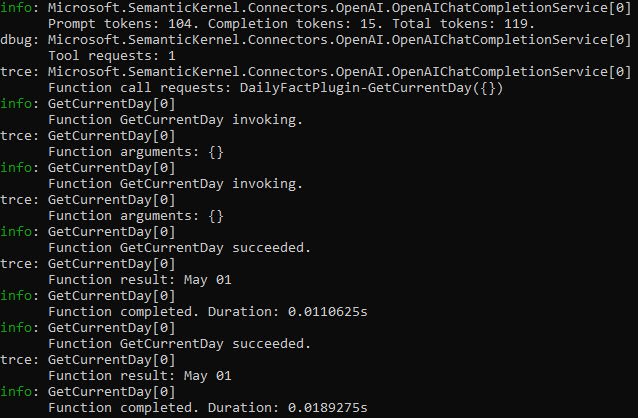

If you have the Trace logging on, you’ll see Semantic Kernel takes care of handling the response and calling the GetCurrentDay function, then taking the result to again call the API:

Handle First Response

The second request to the API has a new message in the message array with the role=“tool” and the content of today’s date “May 01”, which was the result of the function.

Request:
{
  "messages": [
    {
      "content": "Tell me an interesting fact from world about an event that took place on today\u0027s date. Be sure to mention the date in history for context.",
      "role": "user"
    },
    {
      "content": null,
      "tool_calls": [
        {
          "function": {
            "name": "DailyFactPlugin-GetCurrentDay",
            "arguments": "{}"
          },
          "type": "function",
          "id": "call_rOuuLodebcK1rrtvHf1z3DKq"
        }
      ],
      "role": "assistant"
    },
    {
      "content": "May 01",
      "tool_call_id": "call_rOuuLodebcK1rrtvHf1z3DKq",
      "role": "tool"
    }
  ],
  "max_tokens": 250,
  "temperature": 0.7,
  "top_p": 1,
  "n": 1,
  "presence_penalty": 0,
  "frequency_penalty": 0,
  "model": "gpt-3.5-turbo-1106",
  "tools": [
    {
      "function": {
        "name": "DailyFactPlugin-GetDailyFact",
        "description": "Provides interesting historic facts for the current date.",
        "parameters": {
          "type": "object",
          "required": [
            "today"
          ],
          "properties": {
            "today": {
              "type": "string",
              "description": "Current day"
            }
          }
        }
      },
      "type": "function"
    },
    {
      "function": {
        "name": "DailyFactPlugin-GetCurrentDay",
        "description": "Retrieves the current day.",
        "parameters": {
          "type": "object",
          "required": [],
          "properties": {}
        }
      },
      "type": "function"
    }
  ],
  "tool_choice": "auto"
}

The second response from the API, is another tool_calls array and finish_reason = “tool_calls”. This time it is to call the GetDailyFact on the DailyFactPlugin with the encoded arguments of { "today": "May 01" }

Response:
{
  "id": "chatcmpl-9K4qAUQx4ekxxKhKyAb8Hljahseex",
  "object": "chat.completion",
  "created": 1714572194,
  "model": "gpt-3.5-turbo-1106",
  "choices": [
    {
      "index": 0,
      "message": {
        "role": "assistant",
        "content": null,
        "tool_calls": [
          {
            "id": "call_vpbIr0MWEtZMgQT0VuYOYARx",
            "type": "function",
            "function": {
              "name": "DailyFactPlugin-GetDailyFact",
              "arguments": "{\u0022today\u0022:\u0022May 01\u0022}"
            }
          }
        ]
      },
      "logprobs": null,
      "finish_reason": "tool_calls"
    }
  ],
  "usage": {
    "prompt_tokens": 134,
    "completion_tokens": 22,
    "total_tokens": 156
  },
  "system_fingerprint": "fp_482d920018"
}

In the second response, SK invokes the GetDailyFact function passing the date, which then causes another request to the API:

Handle Second Response

The third request to the API is a pretty simple prompt being sent to get a daily fact, very similar to the first Hello World example.

Request:
{
  "messages": [
    {
      "content": "Tell me an interesting fact from world \r\n        about an event that took place on May 01.\r\n        Be sure to mention the date in history for context.",
      "role": "user"
    }
  ],
  "temperature": 0.7,
  "top_p": 1,
  "n": 1,
  "presence_penalty": 0,
  "frequency_penalty": 0,
  "model": "gpt-3.5-turbo-1106"
}

NOTE: This call is just the GetDailyFact plugin method executing, it does not have all the conversation of the original request

The response from the GetDailyFact is what we would expect for the prompt being passed:

Response:
{
  "id": "chatcmpl-9K4qBEjOAUBTOkAxKQiOVhPEBZr2h",
  "object": "chat.completion",
  "created": 1714572195,
  "model": "gpt-3.5-turbo-1106",
  "choices": [
    {
      "index": 0,
      "message": {
        "role": "assistant",
        "content": "On May 1, 1931, the Empire State Building in New York City was officially opened. At 102 stories, it was the tallest building in the world at the time and held that title for nearly 40 years. The building\u0027s construction was completed in just 410 days, a remarkable feat considering the technology available at the time. Today, the Empire State Building remains an iconic symbol of New York City and a popular tourist attraction."
      },
      "logprobs": null,
      "finish_reason": "stop"
    }
  ],
  "usage": {
    "prompt_tokens": 39,
    "completion_tokens": 90,
    "total_tokens": 129
  },
  "system_fingerprint": "fp_482d920018"
}

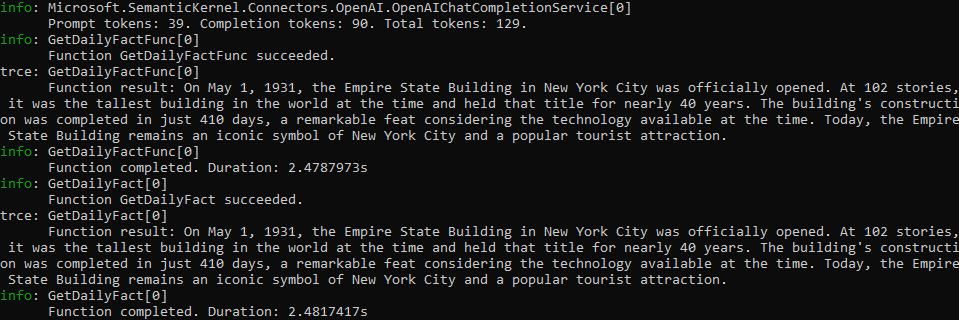

Now that the GetDailyFact plugin method returned, SK will take the result and continue with the original call.

Handle Third Response

The fourth (and last) request to the API now includes the tool message with the response from the GetDailyFact plugin method - along with all the other history of this call:

Request:
{
  "messages": [
    {
      "content": "Tell me an interesting fact from world about an event that took place on today\u0027s date. Be sure to mention the date in history for context.",
      "role": "user"
    },
    {
      "content": null,
      "tool_calls": [
        {
          "function": {
            "name": "DailyFactPlugin-GetCurrentDay",
            "arguments": "{}"
          },
          "type": "function",
          "id": "call_rOuuLodebcK1rrtvHf1z3DKq"
        }
      ],
      "role": "assistant"
    },
    {
      "content": "May 01",
      "tool_call_id": "call_rOuuLodebcK1rrtvHf1z3DKq",
      "role": "tool"
    },
    {
      "content": null,
      "tool_calls": [
        {
          "function": {
            "name": "DailyFactPlugin-GetDailyFact",
            "arguments": "{\u0022today\u0022:\u0022May 01\u0022}"
          },
          "type": "function",
          "id": "call_vpbIr0MWEtZMgQT0VuYOYARx"
        }
      ],
      "role": "assistant"
    },
    {
      "content": "On May 1, 1931, the Empire State Building in New York City was officially opened. At 102 stories, it was the tallest building in the world at the time and held that title for nearly 40 years. The building\u0027s construction was completed in just 410 days, a remarkable feat considering the technology available at the time. Today, the Empire State Building remains an iconic symbol of New York City and a popular tourist attraction.",
      "tool_call_id": "call_vpbIr0MWEtZMgQT0VuYOYARx",
      "role": "tool"
    }
  ],
  "max_tokens": 250,
  "temperature": 0.7,
  "top_p": 1,
  "n": 1,
  "presence_penalty": 0,
  "frequency_penalty": 0,
  "model": "gpt-3.5-turbo-1106",
  "tools": [
    {
      "function": {
        "name": "DailyFactPlugin-GetDailyFact",
        "description": "Provides interesting historic facts for the current date.",
        "parameters": {
          "type": "object",
          "required": [
            "today"
          ],
          "properties": {
            "today": {
              "type": "string",
              "description": "Current day"
            }
          }
        }
      },
      "type": "function"
    },
    {
      "function": {
        "name": "DailyFactPlugin-GetCurrentDay",
        "description": "Retrieves the current day.",
        "parameters": {
          "type": "object",
          "required": [],
          "properties": {}
        }
      },
      "type": "function"
    }
  ],
  "tool_choice": "auto"
}

The final response there is just the assistant message with the content we would expect and a finish_reason = “stop”

Response:
{
  "id": "chatcmpl-9K4qEm0zdHPZbULEh1ztSu5rJsLhj",
  "object": "chat.completion",
  "created": 1714572198,
  "model": "gpt-3.5-turbo-1106",
  "choices": [
    {
      "index": 0,
      "message": {
        "role": "assistant",
        "content": "On May 1st, 1931, the Empire State Building in New York City was officially opened. At 102 stories, it was the tallest building in the world at the time and held that title for nearly 40 years. The building\u0027s construction was completed in just 410 days, a remarkable feat considering the technology available at the time. Today, the Empire State Building remains an iconic symbol of New York City and a popular tourist attraction."
      },
      "logprobs": null,
      "finish_reason": "stop"
    }
  ],
  "usage": {
    "prompt_tokens": 259,
    "completion_tokens": 92,
    "total_tokens": 351
  },
  "system_fingerprint": "fp_482d920018"
}

Conclusion

In this entry, I showed how to use OpenAI Function Calling with our simple Hello World example as well as the detail of what is going on behind the scene with the API calls and Semantic Kernel.

If you have a comment, please message me @haleyjason on twitter/X.

Semantic Kernel Hello World Plugins Part 3
